R7 textile hoses with stainless steel fittings

R7 textile hoses with stainless steel fittings

CONTACT D'AFFAIRES Télécharger
berizzi-R7-textile-hoses-with-stainless-steel-fittings
CODE  DESCRIPTION Ø I mm Ø E mm WORKING PRESSURE max. bar RADIUS min. mm WEIGHT g/m REEL mt FERRULE CODE
KT7532 R7 textile hose 5/32” 6,4 13,5 267 25 41 200 BB1096
KT7316 R7 textile hose 3/16” 4,8 10 280 35 68 200 BB1090
KT7014 R7 textile hose 1/4” 6,4 11,8 270 50 87 200 BB1091
KT7038 R7 textile hose 3/8” 9,7 16 260 75 146 150 BB1092
KT7012 R7 textile hose 1/2” 13 20,3 140 95 214 100 BB1093



COD DESCRIPTION MT. RACC.
6716054T Textile hose  R7  3/16” mt 5 conn. 1/4”
6716754T Textile hose  R7  3/16” mt 7,5 conn. 1/4”
6716104T Textile hose  R7  3/16” mt 10 conn. 1/4”
6716154T Textile hose  R7  3/16” mt 15 conn. 1/4”
6716204T Textile hose  R7  3/16” mt 20 conn. 1/4”
6716055T Textile hose  R7  3/16” mt 5 conn. 16x1,5
6716755T Textile hose  R7  3/16” mt 7,5 conn. 16x1,5
6716105T Textile hose  R7  3/16” mt 10 conn. 16x1,5
6716155T Textile hose  R7  3/16” mt 15 conn. 16x1,5
6716205T Textile hose  R7  3/16” mt 20 conn. 16x1,5
Conn. S.steel - Hose 3/16” -Press. max: 280 Bar (Psi 4060)



COD DESCRIPTION MT. RACC.
6714054T Textile hose  R7  1/4” mt 5 conn. 1/4”
6714754T Textile hose  R7  1/4” mt 7,5 conn. 1/4”
6714104T Textile hose  R7  1/4” mt 10 conn. 1/4”
6714154T Textile hose  R7  1/4” mt 15 conn. 1/4”
6714204T Textile hose  R7  1/4” mt 20 conn. 1/4”
6714055T Textile hose  R7  1/4” mt 5 conn. 16x1,5
6714755T Textile hose  R7  1/4” mt 7,5 conn. 16x1,5
6714105T Textile hose  R7  1/4” mt 10 conn. 16x1,5
6714155T Textile hose  R7  1/4” mt 15 conn. 16x1,5
6714205T Textile hose  R7  1/4” mt 20 conn. 16x1,5
6714058T Textile hose  R7  1/4” mt 5 conn. 3/8”
6714758T Textile hose  R7  1/4” mt 7,5 conn. 3/8”
6714108T Textile hose  R7  1/4” mt 10 conn. 3/8”
6714158T Textile hose  R7  1/4” mt 15 conn. 3/8”
6714208T Textile hose  R7  1/4” mt 20 conn. 3/8”
Conn. S.steel - Hose 1/4” - Press. max: 270 Bar (Psi 3915)



COD DESCRIPTION MT. RACC.
6738055T Textile hose  R7  3/8” mt 5 conn. 16x1,5
6738755T Textile hose  R7  3/8” mt 7,5 conn. 16x1,5
6738105T Textile hose  R7  3/8” mt 10 conn. 16x1,5
6738155T Textile hose  R7  3/8” mt 15 conn. 16x1,5
6738205T Textile hose  R7  3/8” mt 20 conn. 16x1,5
6738058T Textile hose  R7  3/8” mt 5 conn. 3/8”
6738758T Textile hose  R7  3/8” mt 7,5 conn. 3/8”
6738108T Textile hose  R7  3/8” mt 10 conn. 3/8”
6738158T Textile hose  R7  3/8” mt 15 conn. 3/8”
6738208T Textile hose  R7  3/8” mt 20 conn. 3/8”
Conn. S.steel - Hose 3/8” -Press. max: 260 Bar (Psi 3770)



COD DESCRIPTION MT. RACC.
6715054T Textile hose  R7  5/32” mt 5 conn. 1/4”
6715754T Textile hose  R7  5/32” mt 7,5 conn. 1/4”
6715104T Textile hose  R7  5/32” mt 10 conn. 1/4”
6715154T Textile hose  R7  5/32” mt 15 conn. 1/4”
6715204T Textile hose  R7  5/32” mt 20 conn. 1/4”
Conn. S.steel - Hose 5/32” -Press. max: 200 Bar (Psi 2900)

Spécifications techniques

Technical-constructive features:
inner core in polyamide, polyester textile reinforcement and exterior covering in antiabrasion micro perforated
polyurethane for the conduction of air and compatible gases. These hoses are not able to dissipate electrostatic charges
that may build up in case non-conductive fluids are conveyed.

Application:
these R7 hoses series have been created for medium pressure conduction of polyols, solvents, paints and compatible gases.

Working temperature:
from-40°C to +100°C From -40°F to +212°F
Max. working temperature of air, water and water-based fluids is + 95°C (+203°F).
Vacuum rating:
0,93 bar; 700 mm Hg

Specifications:
meet or exceed SAE J517 sez. SAE 100R7 - ISO 3949 standards.

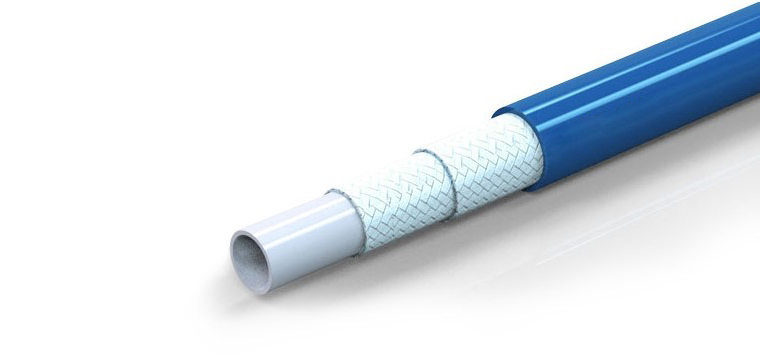

Demonstrative detail of the hose internal section.
N.B: hose color may change depending on stock availability
