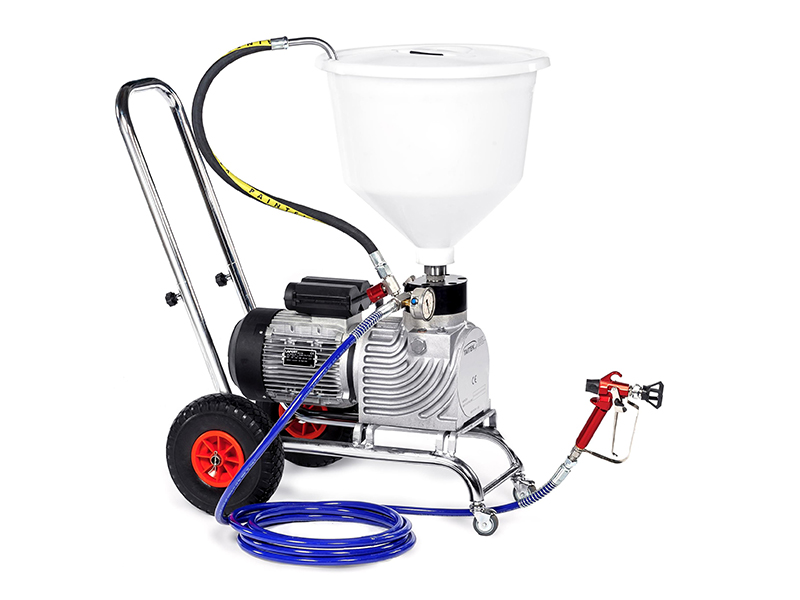

TSUNAMI 11
Electric Diaphragm pump
Electric diaphragm pump for professional high-pressure airless paint spraying, suitable for the light construction sector for medium-large surfaces with medium-low viscosity mural products, enamels, lacquers, base coats and varnishes, medium and low viscosity water-based paints and mural injection resins.
| CODE | DESCRIPTION |
| TKU11E | TSUNAMI 11 Electric airless diaphragm pump volt 230/Hz50 single phase and orizontal C/ Trolley - Manometer - HP hose 7,5m - RST2 spray gun - FM6 tip guard - Reversible FM6 tip - Complete suction system |
| TKU11F | TSUNAMI 11 Electric airless diaphragm pump volt 230/ Hz50 single phase and orizontal C/ Trolley - Manometer - HP hose 7,5m - RST2 spray gun - FM6 tip guard - Reversible FM6 tip - 35L Gravity tank |
| TKU11A | TSUNAMI 11 Electric airless diaphragm pump volt 230/ Hz50 single phase and orizontal C/ Trolley - Manometer - Complete suction system |
| TKU11D | TSUNAMI 11 Electric airless diaphragm pump volt 230/ Hz50 single phase and orizontal C/ Trolley - Manometer - 35L Gravity tank |
Technical specifications
Motor | Volt: 230 Volt/ 50 Hz
Variant: 380 Volt/ 110 Volt
Power: 2,23Kw
Max. Delivery Free Flow: ltr/min 9,5
1 Gun 0,043
Max. Tip 2 Guns 0,019
3 Guns ---
Max. Working outlet pressure: Bar (PSI) 220 (3190)
Max length HP hose: mt. 100
Max length HP hose (elevation): mt. 100
Weight: kg. 54
Material inlet fitting size: M 36x2 mm
Material outlet fitting size: M 16x1,5 mm
Application
Suitable for the light construction sector for medium-large surfaces with medium-low viscosity mural products, enamels, lacquers, base coats and varnishes, medium and low viscosity water-based paints and mural injection resins.
